Argon-Ions Laser Series

The Workhorse for multi-wavelength applications

Emission lines from 454 nm to 514 nm

Excellent beam quality

Long term stability

Low noise

LASOS Ar-Ion Laser Series
Front view - LASOS Ar-Ion Laser Series
Site view - LASOS Ar-Ion Laser Series
Bonding - LASOS Ar-Ion Laser Series

The LASOS® Ar-Ion lasers cover a broad spectrum in the blue and green spectral range, with emission lines from 454 nm to 514 nm, in single wavelength and multiwavelength versions with output powers up to 225 mW. For photo printing applications in the AGFA d-lab.2 and d-lab.3 printers a dual line laser with emission at 454 / 458 nm and 514 has been developed, showing an excellent beam quality, beam pointing stability and long-term stability with low noise operation.

All laser tubes have an internal mirror vacuum-tight hard-sealed and integrated resonator construction optimizing the life time and power stability. The laser mirrors are adjusted and fixed by a special, proprietary technology providing maintenance-free operation and no need for readjustment in the field. The LASOS® laser modules are compact, economical and are available with several cooling options. All laser models can be provided with OEM power supplies, designed to meet the European and American standards with availability of approvals and certificates CDRH, IEC, CDA, CE, TÜV, UL.

Customized solutions for specific applications as well as a fiber coupling option are available. For particular models a tube exchange is available.

Spezifications

ModelWavelength [nm]Min. output power free beam
[mW]
Beam Diameter
[mm]
LGK 7801 BM06454.5 – 496.5200.65multi line
LGK 7872 BM454.5 – 496.5300.65multi line
LGK 7801 ML06454.5 – 514.5250.66multi line
LGK 7872 ML454.5 – 514.5400.66multi line
LGK 7872 BL454.5 / 457.550.64single line
LGK 7872 BL01454.5 / 457.550.64single line
LGK 7801 M6488120.66single line
LGK 7872 M488200.66single line
LGK 7801 GL6514.5100.64single line
LGK 7872 GL514.5150.64single line
LGK 7872 GL01514.5150.66single line
LGK 7890 A Rev. 01454 / 457 / 5144 @ 454 / 457
10 @ 514
0.65 / 0.69dual line

Accessory

Power supply
LGN 3001 / 4000

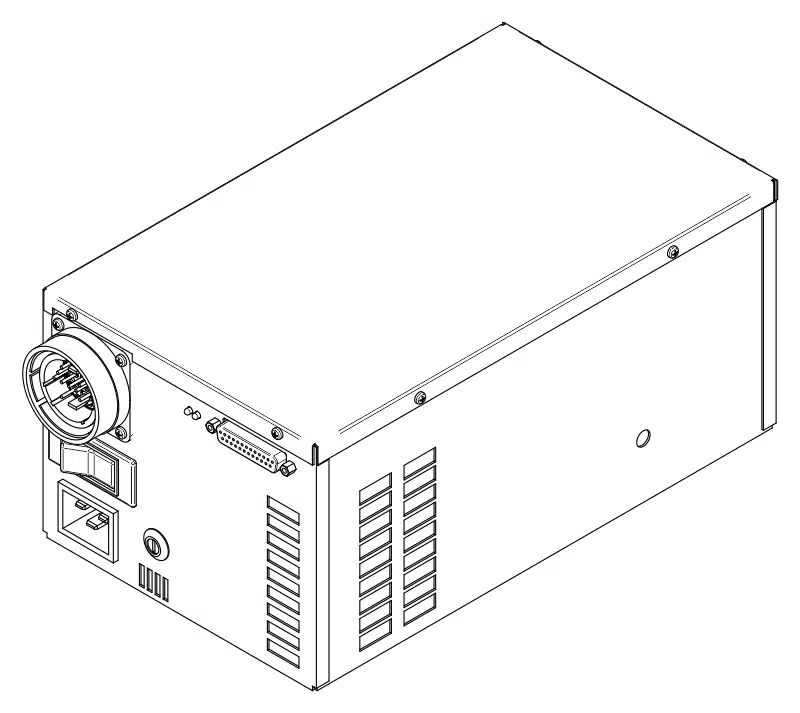

LASOS power supply - LGN 3001
  • Input: 47 – 63 Hz, 100 – 240 / 200 – 240 V AC
  • Output: 70 – 150 / 70 – 220 V DC
  • Operating Current: 3.5 – 9 / 3.0 – 12 A

Remote Control
RMC 7872

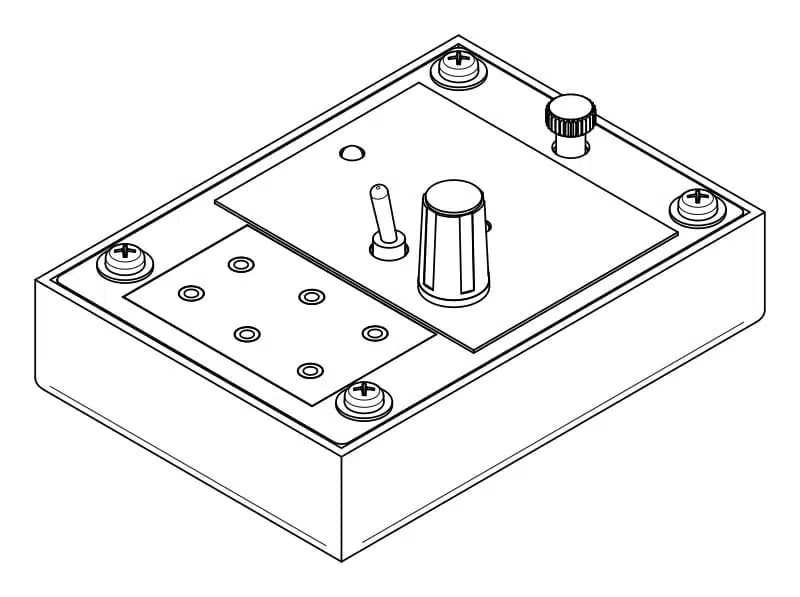

LASOS remote control - RMC 7872

Drawings

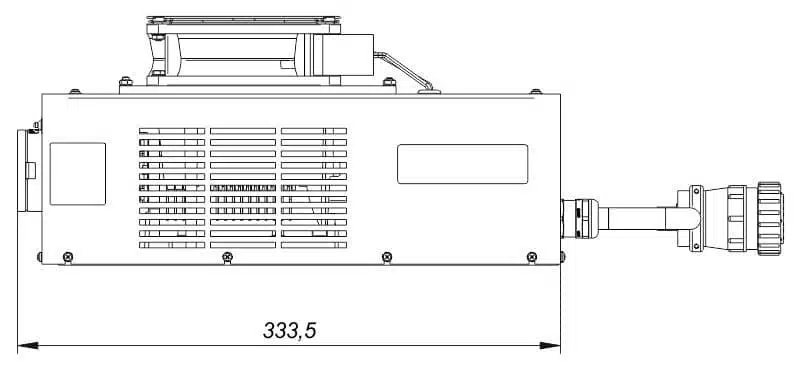

Design of LGK 7801

LASOS Ar-Ion Laser - LGK 7801 BM

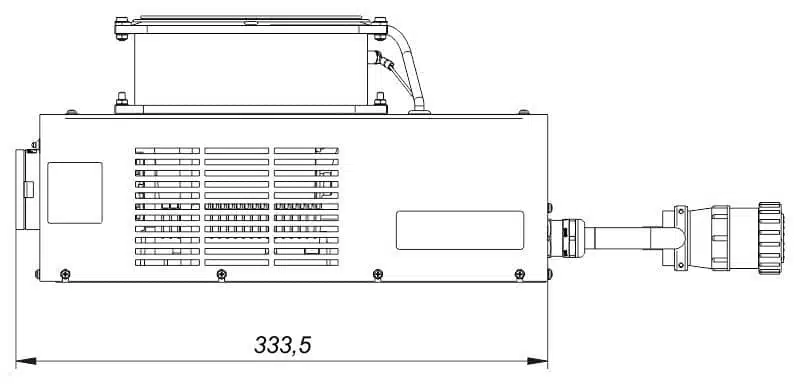

Design of LGK 7872 & LGK 7890

LASOS Ar-Ion Laser - LGK 7872 & LGK 7890

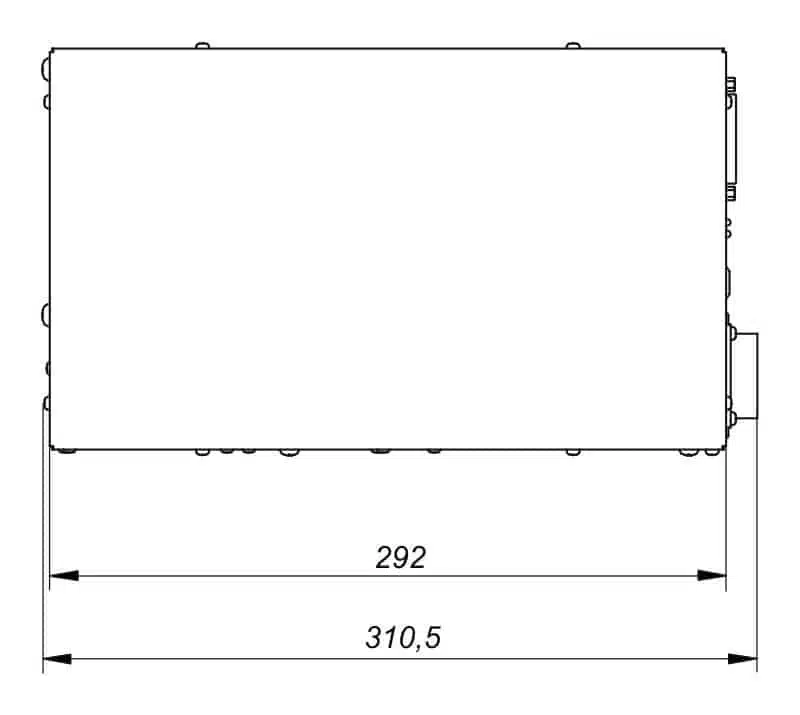

LGN 4000

LASOS power supply - LGN 4000 dimensions

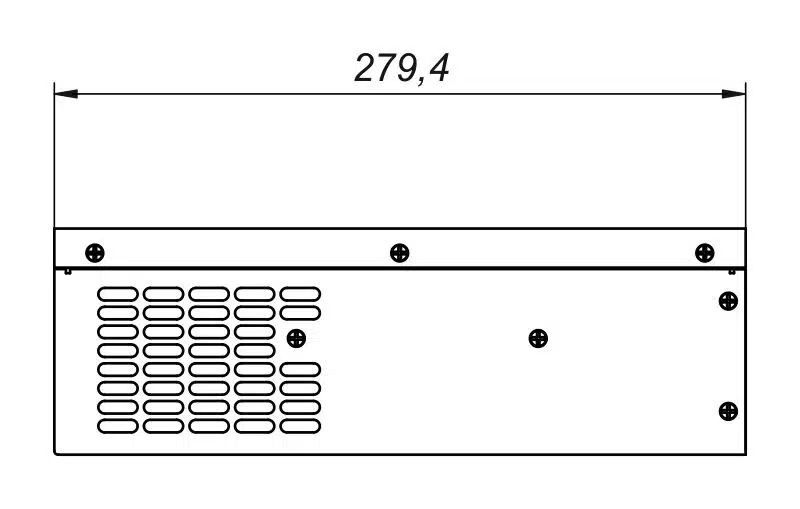

LGK 7872 site view

LASOS Ar-Ion Laser - LGK 7872 site view

Fields of Application

The lasers are designed for multipurpose solutions for scientific and
OEM applications:

Confocal Laser Scanning Microscopy

DNA Sequencing

Flow Cytometry

Analytical Chemistry

Fast-Flow-Rate Particle Measurements

Digital Imaging

Medical

Basic Research

Entertainment
