Designed for long life
Low noise and high stability
Excellent beam quality
Standard and customized models
Single mode or multi mode
Randomly or linear polarized
The LASOS® Helium Neon lasertubes and modules have a robust mechanical design, excellent beam quality and long service life of up to 30,000 hours. Standard and customized models are available in a large variety in the spectral range red, green and yellow with output powers between 0.5 and 20 mW. Options are single mode or multimode, randomly or linear polarized and Brewster window tubes for educational and scientific purposes.
Although the technology underlying He-Ne lasers is now over 50 years old, many manufacturers of high-precision measurement technology still rely on the excellent beam properties and unbeatable price-performance ratio.
The main applications for He-Ne lasers today are interferometric measurement technology and spectroscopy.
The properties and lifespan of a He-Ne laser are largely determined by the power supply used. In addition to power supplies from various manufacturers, LASOS also offers a range of its own He-Ne power supplies with an input voltage of 12 V and an operating current between 3.5 and 5 mA. We recommend LASOS He-Ne power supplies to all our customers in the OEM sector who operate LASOS lasers in the DC range.
Customized solutions for specific applications can be provided.
Spezifications
He-Ne Laser Tubes – Wavelength 632.8 nm
| Model | Min. output power free beam [mW] | Beam Diameter [mm] | |
|---|---|---|---|
| LGR 7656 | 0.5 | 0.34 | |
| LGR 7650 | 0.5 | 0.49 | polarized |
| LGR 7655 | 0.6 | 0.49 | |
| LGR 7655 S | 1 | 0.49 | |
| LGR 7610 * | 2 | 0.63 | |
| LGR 7610 H * | 2 | 0.63 | |
| LGR 7610 P | 2 | 0.63 | SL |
| LGR 7621 S | 2 | 0.75 | |
| LGR 7621 S01 | 2.6 | 0.75 | |
| LGR 7621 S03 | 2 | 0.75 | PS |
| LGR 7634 | 2 | 0.75 | polarized |
| LGR 7627 | 5 | 0.8 | |
| LGR 7627 BF | 5 | Brewster window termination | |
| LGR 7628 | 5 | 0.8 | polarized |
| LGR 7621 MM | 5 | 1.4 | multimode |
| LGR 7627 MM | 10 | 1.5 | multimode |
| LGR 7660 BF01 | 1 | Brewster window termination | |
| LGR 7695 | 0.75 | 0.49 | random SF |
| LGR 7695-01 | 0.75 | 0.49 | SF: 1.5 – 2.3 MHz @ 200 G |
| LGR 7695-02 | 0.75 | 0.49 | SF: 2.3 – 2.8 MHz @ 260 G |
* Also available without polarization switching
All tubes without power supply! For further information please take a look into our LASOS He-Ne laser series catalogue.
He-Ne Laser Modules – Wavelength 632.8 nm
| Model | Min. output power free beam [mW] | Beam Diameter [mm] | |
|---|---|---|---|
| LGK 7650-02 | 0.5 | 0.49 | polarized |
| LGK 7650-03 | 0.5 … 1 | 0.49 | laser class 2, polarized |
| LGK 7655 * | 0.6 | 0.49 | |
| LGK 7655 S * | 1 | 0.49 | |
| LGK 7610 * | 2 | 0.63 | |
| LGK 7610 H * | 2 | 0.63 | with heater foil |
| LGK 7610 P | 2 | 0.63 | polarized, without sidelines |
| LGK 7672 * | 2 | 0.75 | |
| LGK 7634 | 2 | 0.75 | polarized |
| LGK 7634 L | 2.2 … 3.2 | 0.75 | polarized |
| LGK 7627-08 | 5 | 0.8 | |
| LGK 7628 | 5 | 0.8 | polarized |
| LGK 7628 L | 5.5 … 7.5 | 0.8 | polarized |
| LGK 7621 MM | 5 | 1.4 | multimode |
| LGK 7627 MM | 10 | 1.5 | multimode |
| LGK 7653-08 | 10 | 0.7 | |
| LGK 7654-08 | 10 | 0.7 | polarized |
| LGK 7654-13 | 10 | 0.7 | polarized |
| LGK 7665 | 15 | 1 | |
| LGK 7665 P | 15 | 1 | polarized |
| LGK 7665-18 | 18 | 1 | |
| LGK 7665 P18 | 18 | 1 | polarized |
| LGK 7665-20 | 20 | 1 |
He-Ne Laser Modules – Wavelength 594 nm
| Model | Min. output power free beam [mW] | Beam Diameter [mm] | |
|---|---|---|---|
| LGK 7512 P | 2 | 0.79 | polarized |
He-Ne Laser Modules – Wavelength 543 nm
| Model | Min. output power free beam [mW] | Beam Diameter [mm] | |
|---|---|---|---|
| LGK 7786 P50 | 0.5 | 0.85 | polarized |
| LGK 7786 P75 | 0.75 | 0.85 | polarized |
| LGK 7786 P100 | 1 | 0.85 | polarized |
| LGK 7786 P100-03 | 1 | 0.85 | polarized |
| LGK 7786 P120 | 1.2 | 0.85 | polarized |
| LGK 7786 P150 | 1.5 | 0.85 | polarized |
| LGK 7786 PD1 | 1 | 0.85 | polarized |
| LGK 7785-100 | 1 | 0.88 | |
| LGK 7785-150 | 1.5 | 0.88 | |
| LGK 7785-200 | 2 | 0.88 | |
| LGK 7785-250 | 2.5 | 0.88 |
* Also available without polarization switching
All tubes without power supply! For further information please take a look into our LASOS He-Ne laser series catalogue.
Glossary of terms
Side lines (SL)
Unwanted emission besides the nominal wavelength value, often disturbing in spectroscopy and interferometry. Can be suppressed by special mirror technology.
Polarization switching (PS)
Sudden changes of the polarization of different modes espacially in short tubes. Particularly disturbing when HeNe laser tubes are used in frequency stabilized operation. Can be eliminated by special selection process.
Two longitudinal modes (LM)
Tube supports exact two orthogonally polarized longitudinal modes. Required for special methods of frequency stabilization.
Magnetic field stability (MF)
The above characteristics are also guaranteed in the presence of a strong magnetic field up to 3 G
Split frequencies (SF)
Frequency split of He-Ne laser modes in the presence of a strong magnetic field (> 200 G). Can be used for obtaining extremely high frequency stability. LASOS® has been successful in developing tubes with specific split frequencies for defi ned magnetic fields.
Accessory
Operating a He-Ne laser requires a compatible power supply unit. LASOS offers matching power supplies for all laser models, both with DC input (12V and 24 V) and with AC input (100…230 V). A distinction is made between OEM power supplies and power supplies for laboratory use. OEM power supplies are only designed for installation.
For power supplies with a 12 V input and operating currents up to 5 mA, we recommend LASOS own He-Ne power supplies from the LGN 9101 series.
| Model | Input | Output [kV] | Operating Current [mA] | Applicability |
|---|---|---|---|---|
| LGN 9101 3.5-1300 | 12 V DC | 1.2 – 1.6 | 6.5 | OEM |
| LGN 9101 4.5-1500 | 12 V DC | 1.25 – 1.75 | 5 | OEM |
| LGN 9101 5.0-1500 | 12 V DC | 1.3 – 1.8 | 3.5 | OEM |
| LGN 7460 A | 115 / 230 V AC | 2.2 – 2.6 | 6.5 | OEM |
| LGN 7460 A1 | 115 / 230 V AC | 1.5 – 2.1 | 6.5 | OEM |
| LGN 7461 A | 115 / 230 V AC | 1.25 – 1.75 | 5 | OEM |
| LGN 7466 A | 115 / 230 V AC | 1.0 – 1.6 | 2.8 | OEM |
| LGN 7467 A | 115 / 230 V AC | 1.2 – 1.7 | 3.5 | OEM |
| LGN 7470 A | 115 / 230 V AC | 3.1 – 3.7 | 7 | OEM |
| LGN 7470 A4 | 115 / 230 V AC | 2.5 – 3.1 | 6.5 | OEM |

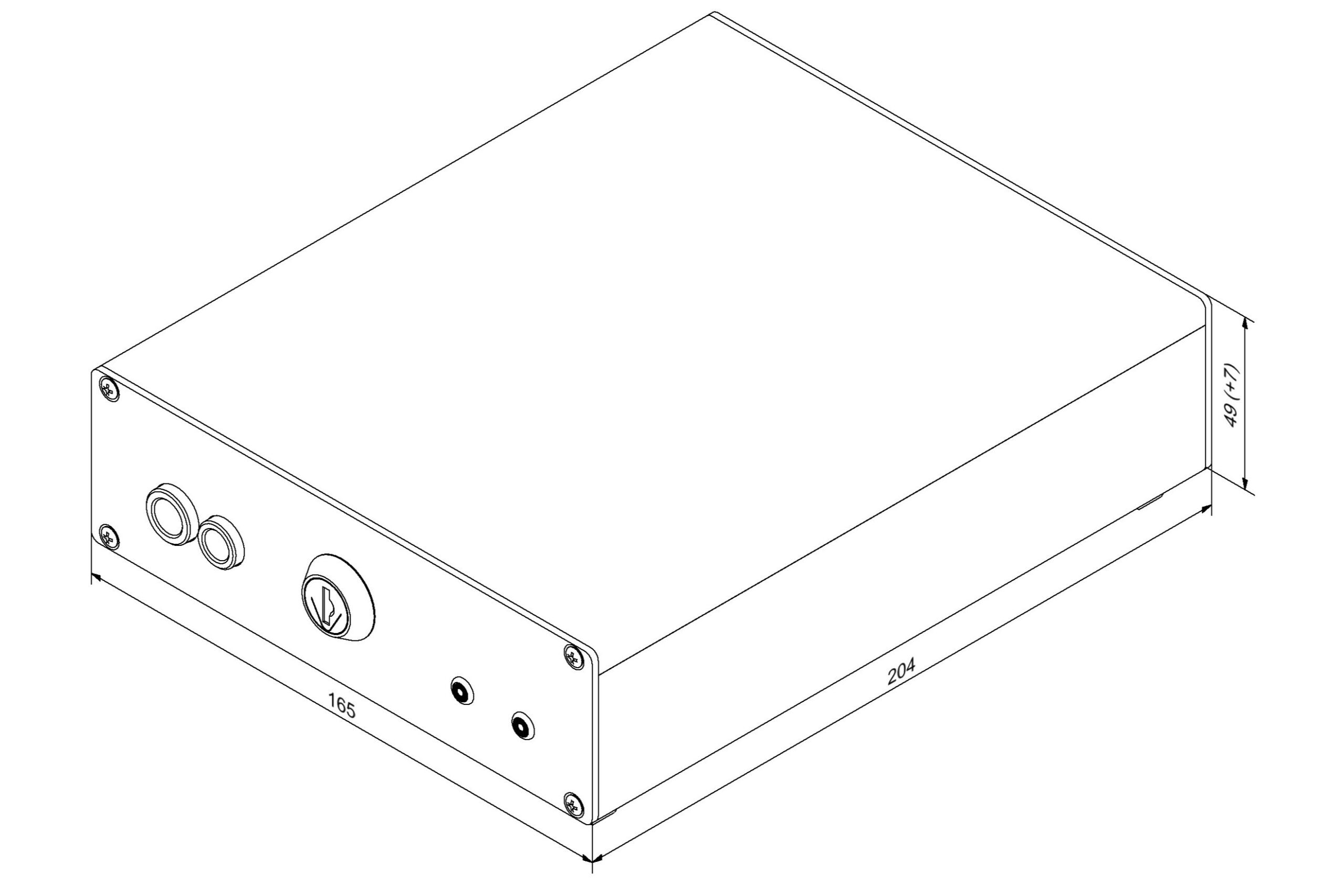

| SAN 7460 A | 115 / 230 V AC | 2.2 – 2.6 | 6.5 | laboratory |
| SAN 7460 A1 | 115 / 230 V AC | 1.5 – 2.1 | 6.5 | laboratory |
| SAN 7461 A1 | 115 / 230 V AC | 1.25 – 1.75 | 5 | laboratory |
| SAN 7467 A | 115 / 230 V AC | 1.2 – 1.7 | 3.5 | laboratory |
| SAN 7470 A | 115 / 230 V AC | 3.1 – 3.7 | 7 | laboratory |
| SAN 7470 A4 | 115 / 230 V AC | 2.5 – 3.1 | 6.5 | laboratory |
| SAN 7460 AJ | 100 V AC | 2.2 – 2.6 | 6.5 | laboratory |
| SAN 7461 AJ | 100 V AC | 1.25 – 1.75 | 5 | laboratory |
| SAN 7467 AJ | 100 V AC | 1.2 – 1.7 | 3.5 | laboratory |
| SAN 7470 AJ | 100 V AC | 3.1 – 3.7 | 7 | laboratory |
| SAN 7470 A4J | 100 V AC | 2.5 – 3.1 | 7 | laboratory |
* For further models, see the laser data sheet.
Drawings
OEM power supply Design A
OEM power supply Design B
OEM power supply Design C
OEM power supply Design D
LASOS He-Ne Laser module
LASOS He-Ne Laser tube
LASOS He-Ne Laser tube with brewster window termination
He-Ne competitor equivalents
He-Ne Laser Customization / Replacement
- Customized He-Ne laser solutions for Original Equipment Manufacturer and end users
- Implementation of various special requirements
- Replacement modules for other manufacturers available (e.g. Lumentum)
Lumentum:
- 1101 / 1101 P
- 1108 / 1108 P
- 1103 / 1103 P
- 1122 / 1122 P
- 1107 / 1107 P
- 1125 / 1125 P
Fields of Application
Microscopy
Holography
FTIR Spectroscopy
Raman Spectroscopy
Digital Imaging
Gas Sensing
Fabry Perot Interferometry
